110° Beam Angle IP44 6500K SMD Led Kitchen Downlights

Product Categories
Aina Lighting Technologies (Shanghai) Co., Ltd
Contact Now

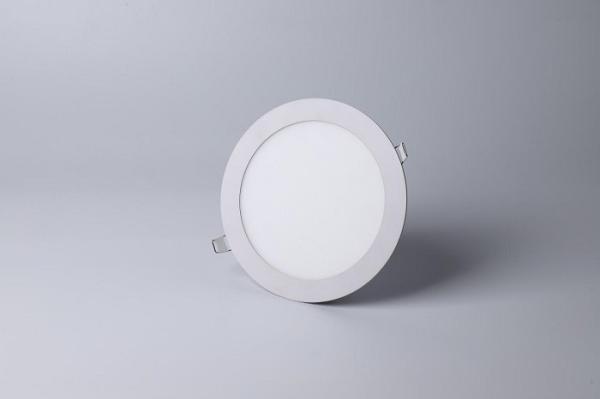

110° Beam Angle IP44 6500K SMD Led Kitchen Downlights

Brand Name : Aina Lighting

Model Number : AN203-24W-100/R8TW

Certification : CE,RoHS,EMC

Place of Origin : China

MOQ : 10

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 per day

Delivery Time : 7 days for samples

Packaging Details : Carton

Light source : LED

Description : Down Light

Input voltage(v) : AC85-265V

Warranty(years) : 3

Working temperature(℃) : -20 - 45

Color temperature(cct) : Cool White,2700-6500K,Warm White,Pure White,3000K4000K6000K

Cri (ra>) : 80,85

Contact Now

Ceiling lighting SMD down light LED Light for Hotel

Features

Plastic housing,V-2 flame rating.

Drive on board design.

Triac dimmable(A) and Tri-color(B) available.

Uniform light, without LGP, no yellowing risk.

3000K 4000K 6000K for option.

Warranty: 3years. IP44 front only. 110°beam angle.

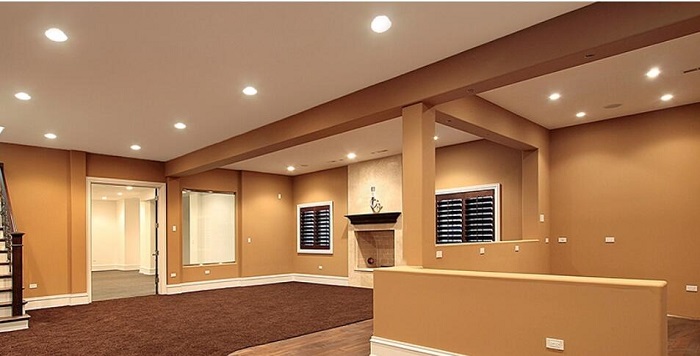

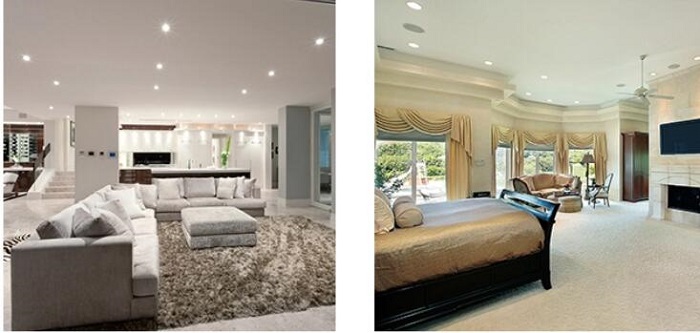

Application

Shopping mall, Super-market, Hotel, Office, Path way, Stations, School, Library, Living room

Specification

　
With Isolated driver, AC85-265V Die-casting aluminum housing, Excellent heat sink, PP 0.8mm diffuser, Minima Glare, Glass lighting, Guide plate, Uniform luminance, 0.2mm pet reflector paper. Isolated driver 　
1 AN-3RDS-IS 3W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 90x90mm, Cut hole: 70x70mm,height: 21mm Beams angle: 120, IP20, 2.5 inches, Box: 11.5x3.3x12cm, Package: 60x35x26cm, 100 pcs/carton 　
2 AN-6RDS-IS 6W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 119x119x16mm, Cut hole: 100x100mm, Beams angle: 120, IP20, 3.5 Inchecs, Box: 14.3x3.3x15cm, Package: 74x35x32cm, 100 pcs/carton 　
3 AN-9RD-IS 9W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 144x144x18mm, Cut hole: 130x130mm, Beams angle: 120, IP20, 4 inches, Box 16x3x19cm, Package: 33x32x40cm, 40 pcs/carton 　
4 AN-12RDS-IS 12W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 167x167x 15mm, Cut hole: 150x150mm, Beams angle: 120, IP20, 5 Inches, Box: 18x3x21.5cm, Package: 37x32x45cm, 40 pcs/carton 　
5 AN-15RDS-IS 15W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 194x194x 14mm, Cut hole: 170x170mm, Beams angle: 120, IP20, 6 Inches, Box 21x3x25.5cm, Package: 52x32x44cm, 40 pcs/carton 　
6 AN-18RDS-IS 18W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 219x219x 15mm, Cut hole: 200x200mm, Beams angle: 120, IP20, 8 Inches, Box: 23x3x27.5cm, Package: 56x32x48, 40 pcs/carton 　
7 AN-24RDS-IS 24W, Square Recessed, LED: 2835, Ra>70, PF>0.5, Product size: 297x297x 15mm, Cut hole: 275x275mm, Beams angle: 120, IP20, 12 Inches, Box: 30.5x3x34cm, Package: 62x32x35.5cm, 20 pcs/carton 　
Model No. Wattage

Lumens(±10%)

Lm

 Input Voltage CCT CRI

Dimensions

mm

Cutout

Mm
AN203-6W-100/R8TW 6W 480-510 220-240V~50-60Hz

3000K 4000K 6000K

CCT Selectable

 Ra80 Φ113*35 Φ90-100
AN203-12W-150/R8TW 12W 960-1020 Φ174*38 Φ145-155
AN203-18W-205/R8TW 18W 1440-1530 Φ244*38 Φ198-210
AN203-20W-220/R8TW 20W 1600-1700 Φ265*41 Φ215-230


110° Beam Angle IP44 6500K SMD Led Kitchen Downlights110° Beam Angle IP44 6500K SMD Led Kitchen Downlights

About us

Aina-4 Technologies (Shanghai) Co., Ltd. is a private limited company registered in Shanghai, China. It specializes in the R&D, design, manufacture, and marketing of light emitting sources and lighting fixtures. It is an enterprise formed by four (4) pioneer lighting companies, putting their resources together to produce products and services that create sustainability not only for the environment, but also for the economies and societies that the company grows with.

Aina-4 products reflect the business philosophy of raising customer expectations and giving them freedom of personal expression through best quality design, materials, and manufacturing processes, at the same time making sure that it leaves a positive impact on all stakeholders socially, economically, and ecologically.

FAQ

Q1. What is the MOQ?
MOQ 1 pcs for mormal product.
Q2. What is your sample terms?
Normal product, 1~3 days. Special product 5-10 days.
Q3. What is the delivery time?
Normal order 5-15 days after deposit. Bulk order 10-30 days.
Q4. Can you OEM?
Yes.
Q5. Can you print our logo on the product?
Yes.
Q6. What standard can this item meet?
CE/RoHS/VDE/SASO/SAA/CCC/CSA/BIS
Q7. Do you have emergency solution for this product?
Yes.
Q8. Do you have dimmable solution for this item?
Yes.
