185W OEM Waterproof 140LM/150LM/W Outdoor Parking Lot Street Light
Description
LED Shoe Box (LED Street Light)
Power: 100W,135W,150W,185W
Product advantages
Part 1
IP66 rated for wet location
Photocell sensor and dimmable function for option
4 kinds of mounting methods is available for different installation
Offering 5 years warranty, over 50000 hours lifetime
Modular design allows for seperation of components for best heat dissipation
Die-casting and powder coated aluminium housing for better anti-corrosion
Part2
Whole fixture lumens over 140LM/W
It connect well with electrical cove, make the heat transfer sufficient, to ensure the lifespan of the products
PC cover with higher transmittance. It has the good weatherability
Using isolated constant current and voltage with short circuit and open circuit protection
Safety and reliable with its wide range of rated input voltage. Its environmental protection, no Hg and Pb
Lower consumption and low maintenance, high luminous effeciency, excellent thermal diffusivity, easy installation
Long life span 50000 hours, it's the best choice for industrial lighting
Product Detail

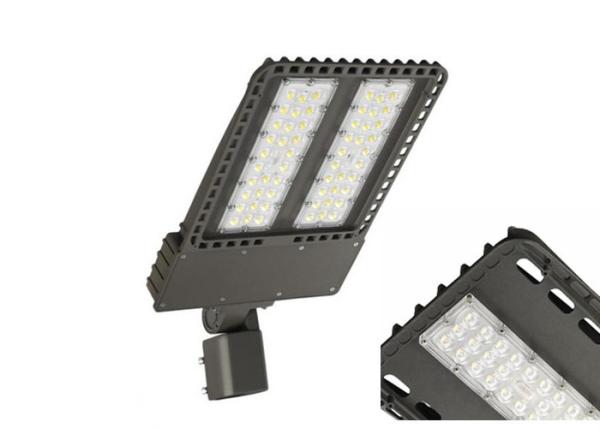

The LED area light is designed as a replacement for LED street lights and vapor lamps. It has a low profile design made of one piece die-cast aluminum housing with UV resistant polycarbonate optical lens. This LED area lighting fixtures delivers high lumens with efficacy up to 150 lumens per watt and long life for a more energy efficient and low maintenance lighting solution. Also, the light is IP66 rated and suitable for use in ambient environments from -20°F to 104°F.
Pakcage and Delivery
Pacakge: Carton box/Single Item
Port: Shanghai or Shenzhen
Delivery: 3-5 days for samples; 10-15 days for big quantity orders
Specification
| Model | Input | LPW | Driver | CCT |
| AN-FD-A-100-03 | AC100-347V | 140LM/W | MW | 4000K-5700K |
| AN-FD-A-135-03 | AC100-347V | 140LM/W | MW | 4000K-5700K |
| AN-FD-A-150-03 | AC100-347V | 140LM/W | MW | 4000K-5700K |
| AN-FD-A-185-03 | AC100-347V | 140LM/W | MW | 4000K-5700K |
Other choise
| Model | Power | Input | LPW | CCT | CRI |
| AN-FD-A-100-03 | 100W | AC100-277V | 150LM/W | 2700K-6000K | >83 |
| AN-FD-A-135-03 | 135W | AC100-277V | 150LM/W | 2700K-6000K | >83 |
| AN-FD-A-150-03 | 150W | AC100-277V | 150LM/W | 2700K-6000K | >83 |
| AN-FD-A-185-03 | 185W | AC100-277V | 150LM/W | 2700K-6000K | >83 |
| AN-FD-A-200-03 | 200W | AC100-277V | 150LM/W | 2700K-6000K | >83 |
| AN-FD-A-240-03 | 240W | AC100-277V | 150LM/W | 2700K-6000K | >83 |
| AN-FD-A-300-03 | 300W | AC100-277V | 150LM/W | 2700K-6000K | >83 |
Our Service
Besides the OEM and ODM, we also welcome all kinds of projects and give our professional advice. Some of our partners and coworkers have many overseas projects experinece and may help you in all sides
For payment, we support the wire transfer, letter of credit and paypay for small amount sample orders of less USD1000
For all customers, we welcome you to visit our factory at any time. You will have your own one to one after sales service personnels
Factory Advantages
Own more than 15 sets of housing moulds
Start LED light manufacturing since 2010
Accept OEM, ODM for abroad market.
Keep Open new moulds for market
Hosing is with patent right, orginal version
