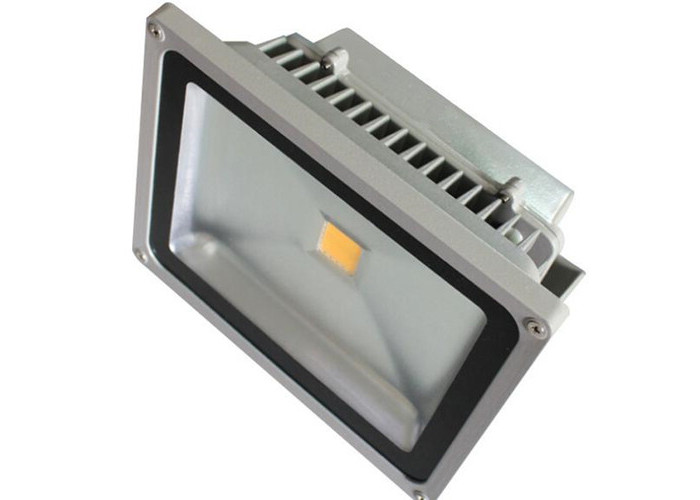

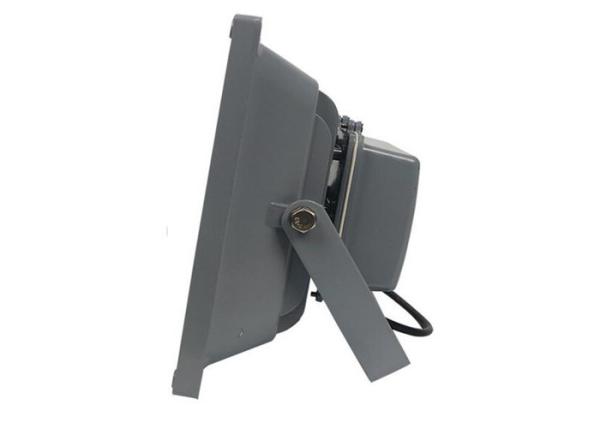

CE Diecasting Aluminum IP65 Water Proof LED Spot Light for Gymnasium and Garage Lighting
Description
LED Floodlighting type 10w LED light series features:
High pressure die-casting aluminum lamp. The surface electrostatic spray
High strength tempered glass. Silion rubber sealing ring

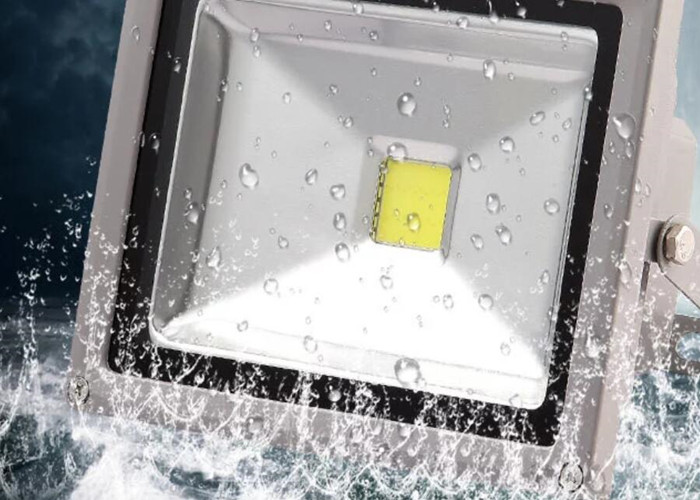

Levels of protection: IP65
Apply to: Billboards, high-rises, parking lots
LED Flood light
Power: 10W
Features
No Need to warm up. It can start and restart immediately, and there will be no light fading phenomenon in ordinary electrified discharge lamps
Excellent electrical performance: High power factor, low current harmonics, constant voltage supply, output constant light flux.
The installation is adaptable: it can be installed in any direction without restriction.
Installation Guide
Loosen the screws on the bracket, and mark the drilling position on the installation site
Drill a hole on the marked position
Attach the bracket to the installation site using screws
Attach the lighting fixture to the bracket using screws
Speficiation
| Model | Power | Input | LPW |
| AN-FG-CW-10-06 | 10W | AC100-277V | 130LM/W |
| AN-FG-CW-20-06 | 20W | AC100-277V | 130LM/W |
Other Choice A
| Model | Color | Input | LPW |
| AN-FG-BC-30-06 | RGB | AC100-347V | 140LM/W |
| AN-FG-BC-50-06 | RGB | AC100-347V | 140LM/W |
| AN-FG-BC-100-06 | RGB | AC100-347V | 140LM/W |
| AN-FG-BC-150-06 | RGB | AC100-347V | 140LM/W |
| AN-FG-BC-200-06 | RGB | AC100-347V | 140LM/W |
Other ChoiceB
| Model | Power | Input | CCT | Size |
| AN-FG-BW-30-06 | 30W | AC100-277V | 3000K-6000K | 180 x 166 x 49mm |
| AN-FG-BW-50-06 | 50W | AC100-277V | 3000K-6000K | 180 x 166 x 49mm |
| AN-FG-BW-100-06 | 100W | AC100-277V | 3000K-6000K | 288 x 243 x 62mm |
| AN-FG-BW-150-06 | 150W | AC100-277V | 3000K-6000K | 350 x 284 x 75mm |
| AN-FG-BW-200-06 | 200W | AC100-277V | 3000K-6000K | 433 x 323 x 80mm |
Application
Main Usage: Hotel exterior wall lighting, commercial plaza, landscape lighting, internal decoration & Exterior lighting
Billboards, Highways, Railway tunnels, Bridges and Culverts, squares, buildings, etc
Stadium
Warehouse
Factory
Tunnel, subway
Gymnasium, Garage Lighting
Storage, Yard and Square lighting
Station, dock and road lighting
