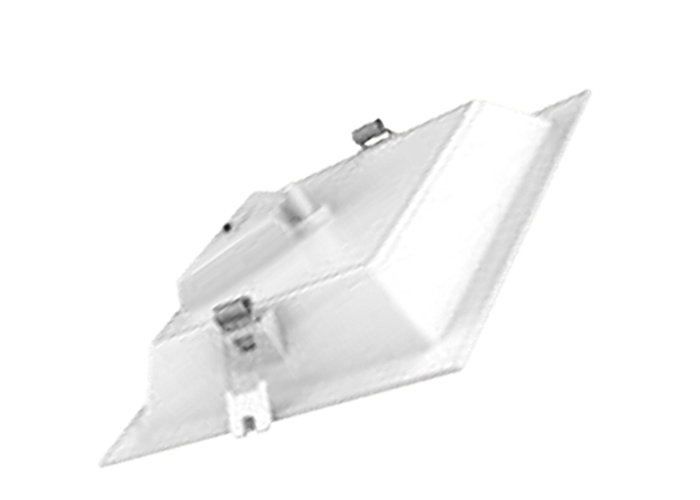

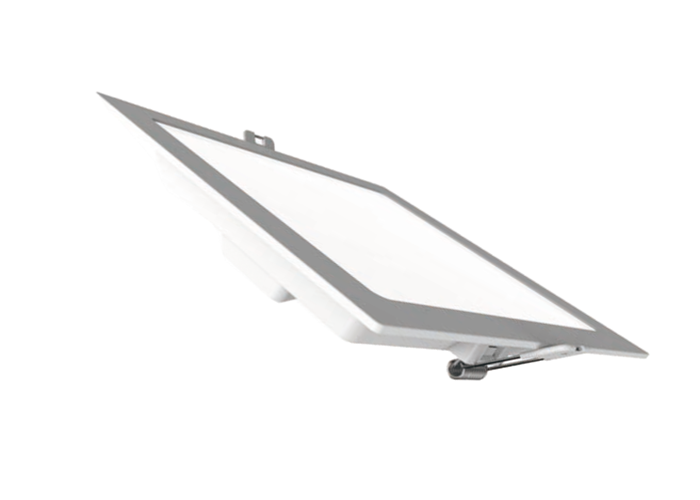

204 version LED Panel Light With Round Outlook Flat Panel for Kitchen and Live Room
Application
Shopping mall, Super-market, Hotel, Office, Path way, Stations, School, Library, Living room
Features
Soft lighting, high transmittance, Uniform luminescence
No coating falling off, color changing, anti-backflow
Plastic housing,V-2 flame rating.
Drive on board design.
Triac dimmable(A) and Tri-color(B) available.
Uniform light, without LGP, no yellowing risk.
3000K 4000K 6000K for option.
Warranty: 3years. IP44 front only. 110°beam angle.
Specification
| Model No. | Wattage | Lumens(±10%) Lm | Input Voltage | CCT | CRI | Dimensions mm | Cutout mm |
| AN204-6W-105x105/R8TW | 6W | 480-510 | 220-240V~50-60Hz | 3000K 4000K 6000K CCT Selectable | Ra80 | 120*120*35 | 105*105 |
| AN204-12W-155x155/R8TW | 12W | 960-1020 | 170*170*38 | 155*155 |
| AN204-18W-205x205/R8TW | 18W | 1440-1530 | 220*220*45 | 205*205 |
| Model No. | Wattage | Lumens(±10%) Lm | Input Voltage | CCT | CRI | Dimensions mm | Cutout Mm |
| AN203-6W-100/R8TW | 6W | 480-510 | 220-240V~50-60Hz | 3000K 4000K 6000K CCT Selectable | Ra80 | Φ113*35 | Φ90-100 |
| AN203-12W-150/R8TW | 12W | 960-1020 | Φ174*38 | Φ145-155 |
| AN203-18W-205/R8TW | 18W | 1440-1530 | Φ244*38 | Φ198-210 |
| AN203-20W-220/R8TW | 20W | 1600-1700 | Φ265*41 | Φ215-230 |
