Waterproof Outdoor Ra70 Round Led Highbay 140W 160W 180W 200W

Aina Lighting Technologies (Shanghai) Co., Ltd
Contact Now

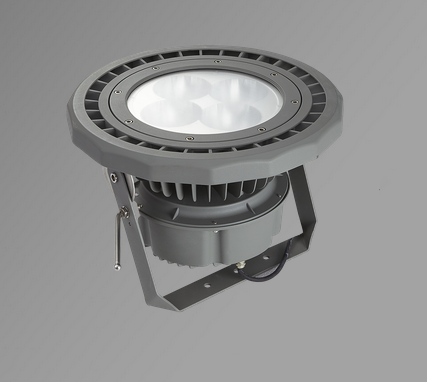

Waterproof Outdoor Ra70 Round Led Highbay 140W 160W 180W 200W

Brand Name : GY LED Lighting

Model Number : GY460GK

Certification : CE ,ROHS ,ISO

Place of Origin : Shanxi

MOQ : 10pcs

Price : Negotation

Payment Terms : L/C, T/T, Western Union/Paypal

Supply Ability : 300000pcs/Year

Delivery Time : 5-8 work days

Packaging Details : Carton

Rated Power : 110W,120W,140W,160W,180W,200W

Power factor : ≥0.95

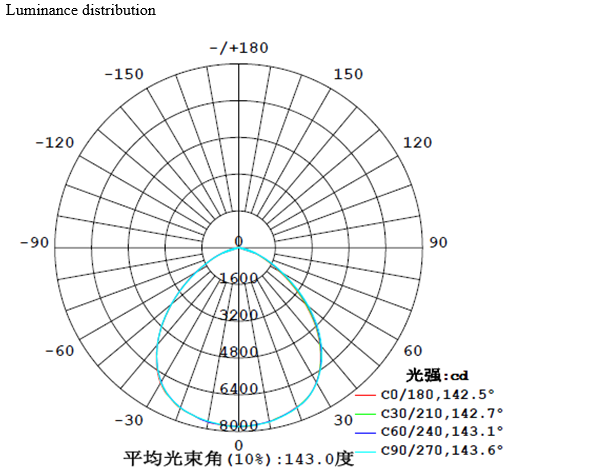

Beam Angle(°) : 71.8

IP Rating : IP65

Operation Temperature(°C) : -40~50

Input Voltage : AC100 ~ 277V

Color Temperature : 3000/4000/5000/5700K

Electrical Insulation Class : CLASS I

CRI : Ra≥70

Warranty : 5 years

Luminous Efficiency (LM/W) : 90

Weight(kg) : 12

Contact Now

  1. Main performance and parameter
  1. Basic parameter
No.ModelIP RatingInsulation GradeOperating Temperature(℃)Weight (Kg)
1140-200WIP65CLASS I-40~5012 / 13

2)Optical parameter

No.ModelColor Rendering Index (Ra)Luminous Flux (lm)Luminous Efficiency (lm/W)Color Temperature
1200W70240001203000/4000/5000/5700K
2180W70216001203000/4000/5000/5700K
3160W70192001203000/4000/5000/5700K
4140W70168001203000/4000/5000/5700K

  1. Product Features
  1. GY460 series adopt rudder design, elegant and beautiful;
  2. Rational construction, external power source, excellent heat exchange, IP65;
  3. Service life is longer than 50000 hours;
  4. luminous efficiency is equal or greater than 130LM/W;
  5. Installation is easy and flexible, can manually adjust the angle, angle can be adjusted manually and adjustable angle is 147°.

Waterproof Outdoor Ra70 Round Led Highbay 140W 160W 180W 200W
Waterproof Outdoor Ra70 Round Led Highbay 140W 160W 180W 200W
Waterproof Outdoor Ra70 Round Led Highbay 140W 160W 180W 200W

Waterproof Outdoor Ra70 Round Led Highbay 140W 160W 180W 200W

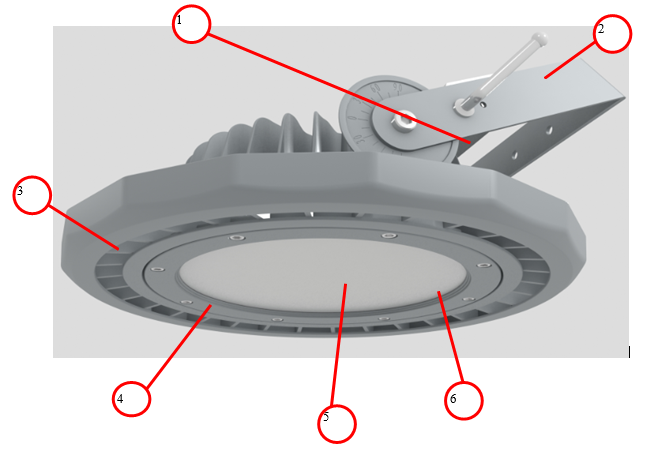

  1. Structure and material
No.NameMaterial
1External power supply
2BracketQ235
3Heat sinkADC12
4Glass pressing ringADC12
5Flat fabric glass
6White reflector


Waterproof Outdoor Ra70 Round Led Highbay 140W 160W 180W 200W
Waterproof Outdoor Ra70 Round Led Highbay 140W 160W 180W 200W

  1. Installation Method

Firstly install brake and wrench screw, and then connect the cable wire. After check, the lamp can normally work as soon as connecting electricity, the specific installation steps are as follows:

1) Open the packing case, fixed the lamp at specified location, adjust the angle between bracket and the lamp, impact wrench screw;

2) Connect the outgoing cable of the lamp with external power supply cable according to the identifier, and then the lamp can normally work as soon as connecting electricity.

AC input connection identifier:

N Waterproof Outdoor Ra70 Round Led Highbay 140W 160W 180W 200W L

N: Neutral wire Waterproof Outdoor Ra70 Round Led Highbay 140W 160W 180W 200W : Earth wire L: Live wire


Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Waterproof Outdoor Ra70 Round Led Highbay 140W 160W 180W 200W

Shipment
Seaport: Tianjin, Shanghai or Shenzhen
Production time:
The prepare time for item for samples is 7-10 days
The production time for normal order is 10-20 days
Others:
All the items will be test before shipment.
All the goods are sent from China for now.
All the order will be shipped by DHL, TNT, FedEx, or By sea, by air etc.
Estimated Time of arrival is 5-10 days by express, 7-10 days by air or 10-60 days by sea.

Waterproof Outdoor Ra70 Round Led Highbay 140W 160W 180W 200W
